CSD EXA1: midterm exam examples and solution ideas

2223Q2

Problem 1

1.— Plans and ideas for solving the exam. Complete your solutions in paper as when writing laboratory reports, find similar problems to compare and discuss your results with your classmates or your instructors.

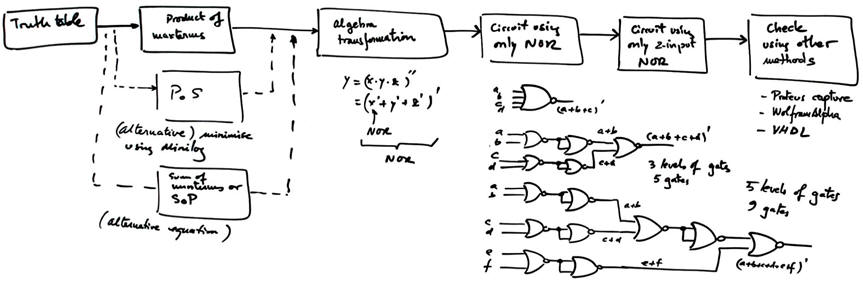

Prob1_1

2.— , 3.— , 4.—

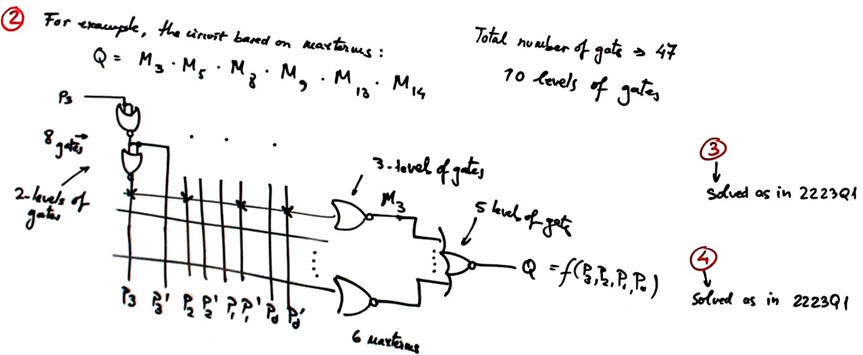

Prob1_2



Problem 2

Note: for clarity to represent and operate integers (N = 1) in binary, you must circle the sign bit in a square with a different pen colour, as shown in these example operations.

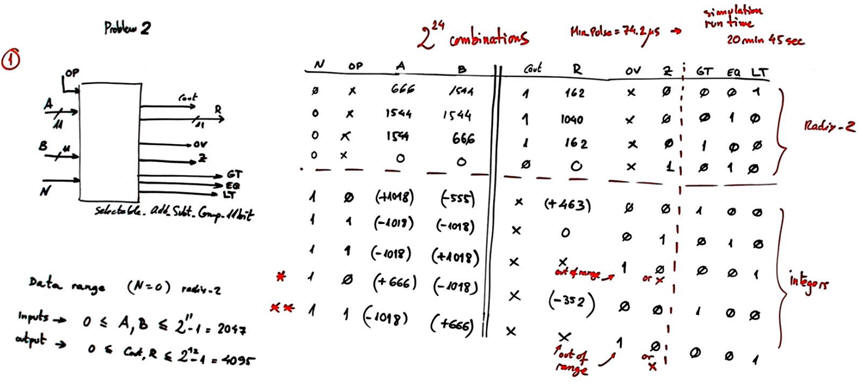

Prob2_1

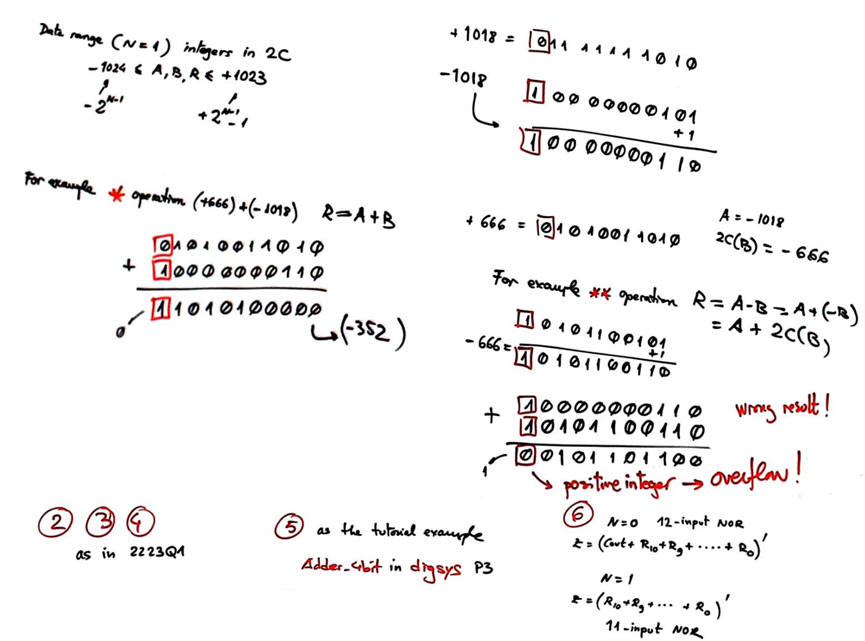

Prob_2_2



Problem 3

1.— as in P1 Circuit_Q tutorial.

2.— as in 2223Q1 (question 13).

3.— as in 2223Q1 (Question 16).
